ADM200N04 Datasheet, Mosfet, ADV

ADM200N04 Features

  • Mosfet
  • Low Gate Charge for Fast Switching Application
  • Low RDS(ON) to Minimize Conductive Loss
  • 100% EAS Guaranteed
  • Optimized V(BR)DSS Ruggedness

PDF File Details

Part number:

ADM200N04

Manufacturer:

ADV

File Size:

1.45MB

Download:

📄 Datasheet

Description:

N-channel mosfet. The ADM200N04 series MOSFETs is a new technology, which combines an innovative super junction technology and advance process. This n

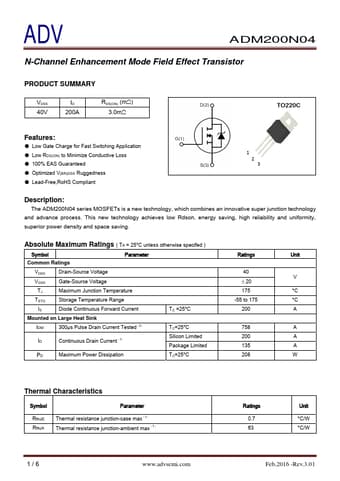

Datasheet Preview: ADM200N04 📥 Download PDF (1.45MB)
Page 2 of ADM200N04 Page 3 of ADM200N04
