ADM205 Datasheet, Drivers/receivers, Analog Devices

ADM205 Features

• Drivers/receivers 0.1 ␮ F to 10 ␮F Capacitors 120 kB/s Data Rate 2 Receivers Active in Shutdown (ADM213) On-Board DC-DC Converters ؎9 V Output Swing with +5 V Supply Low Power (15 mW) Low Power Shutdown

PDF File Details

Part number:

ADM205

Manufacturer:

Analog Devices ↗

File Size:

486.26kb

Download:

📄 Datasheet

Description:

0.1 uf/ +5 v powered cmos rs-232 drivers/receivers. The ADM2xx family of line drivers/receivers is intended for all EIA-232-E and V.28 communications interfaces, especially in applicat

ADM205 Application

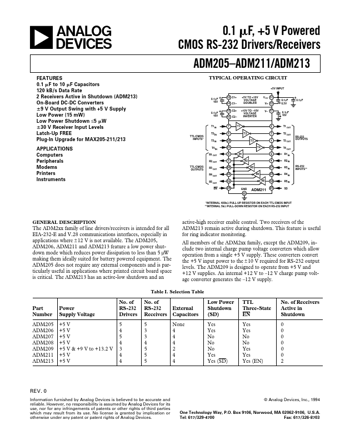

• Applications Computers Peripherals Modems Printers Instruments 0.1 ␮F, +5 V Powered CMOS RS-232 Drivers/Receivers ADM205
    –ADM211/ADM
