ADM23N06D Datasheet (504.73 KB)
ADM23N06D
ADV
504.73 KB
N-channel mosfet.
ADV

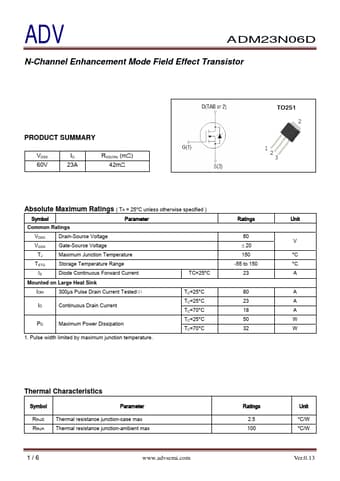

ADM23N06D
N-Channel Enhancement Mode Field Effect Transistor
PRODUCT SUMMARY
VDSS 60V
ID 23A
RDS(ON) (mΩ) 42mΩ
TO251 2
1 23
Absolute Maxim.
