ADM232L, ADM223, CMOS RS-232 Drivers/Receivers

a 5 V Powered CMOS RS-232 Drivers/Receivers ADM223/ADM230L *ADM241L .
EThe ADM2xx family of line drivers/receivers is intended for all EIA-232-E and V.

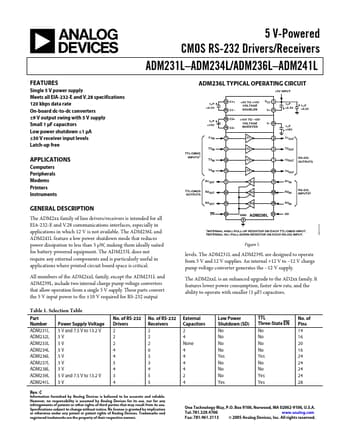

datasheet Preview Page 1 from Datasheet4u.com

ADM223-AnalogDevices.pdf

ADM232L Datasheet Preview — This datasheet PDF includes multiple part numbers: ADM232L, ADM223. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADM232L, ADM223

Manufacturer:

Analog Devices ↗

File Size:

283.57 KB

Description:

CMOS RS-232 Drivers/Receivers

Note:

This datasheet PDF includes multiple part numbers: ADM232L, ADM223.
Please refer to the document for exact specifications by model.

Features

* ADM232L TYPICAL OPERATING CIRCUIT Single 5 V Power Supply 5V INPUT Meets All EIA-232-E and V.28 Specifications 120 kB/s Data Rate On-Board DC-DC Converters 1␮F 6.3V C1+ +5V TO +10V VCC VOLTAGE C1
* DOUBLER V+ 1␮F 6.3V 1␮F 6.3V ؎9 V Output Swing with 5 V Supply Small 1 ␮F Capacito
