ADS1D80, ADS1D60 4 Quadrants Triacs

Description

ADV ADS1D60/80 4 Quadrants Triacs General .
This device is suitable for low power AC switching application, phase control application such as fan speed and temperature modulation control , light.

📥 Download Datasheet

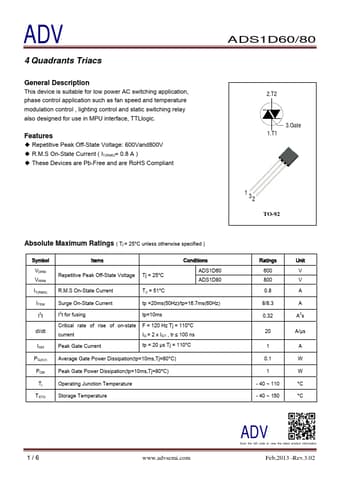

ADS1D80 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS1D80, ADS1D60. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ADS1D80, ADS1D60
Manufacturer: ADV
File Size: 255.65 KB
Datasheet: ADS1D60-ADV.pdf
Description: 4 Quadrants Triacs
Note: This datasheet PDF includes multiple part numbers: ADS1D80, ADS1D60.
Please refer to the document for exact specifications by model.

Features

* Repetitive Peak Off-State Voltage: 600Vand800V
* R. M. S On-State Current ( IT(RMS)= 0.8 A )
* These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1 1 32 TO-92 Absolute Maximum Ratings ( Tj = 25°C unless otherwise specified ) Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG
