AK09915 3-axis Electronic Compass

AK09915 is 3-axis electronic compass IC with high sensitive Hall sensor technology. Small package of AK09915 incorporates magnetic sensors for detecting terrestrial magnetism in the X-axis, Y-axis, and Z-axis, a sensor driving circuit, signal amplifier chain, and an arithmetic circuit for processing.

AK09915 Features

*  Functions:

* 3-axis magnetometer device suitable for compass application

* Built-in A to D Converter for magnetometer data out

* 16-bit data out for each 3-axis magnetic component

* Sensitivity: 0.15 µT/LSB (typ.)

* Serial interface

* I2C bus interface Standard, Fast and Hi

AK09915 Datasheet (775.22 KB)

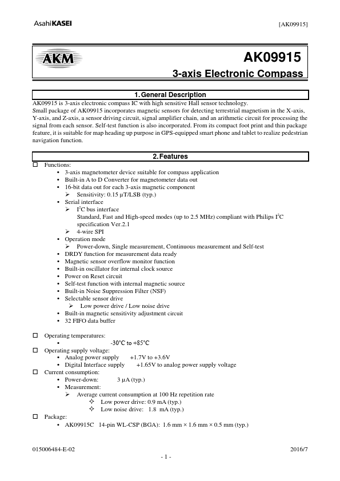

AK09915 Datasheet Preview — Preview of AK09915 PDF

Datasheet Details

Part number:

AK09915

Manufacturer:

AKM

File Size:

775.22 KB

Description:

3-axis electronic compass.
