AK002D4-24 Datasheet - Alpha Industries

GaAs IC 4 Bit Digital Attenuator

AK002D4-24 Features

* s Attenuation in 1 dB Steps to 15 dB s Integral Driver ±5 V Supply Voltages s Low Cost SOIC-14 Plastic Package 0.050 (1.27 mm) 0.016 (0.40 mm) 0.158 (4.01 mm) 0.150 (3.81 mm) PIN 1 INDICATOR PIN 1 0.068 (1.73 mm) MAX. SOIC-14 PIN 14 0.050 (1.27 mm) BSC 0.244 (6.20 mm) 0.228 (5.80 mm) 0.020 (0.51 mm

AK002D4-24 General Description

The AK002D4-24 is an IC FET digital attenuator consisting of four monolithic attenuators with an LSB of 1 dB and a total attenuation of 15 dB with all attenuators connected. The device has integral drivers for each bit requiring less than 4 mA per bit. DC supply voltages of ±5 V are required. The at.

AK002D4-24 Datasheet (51.88 KB)

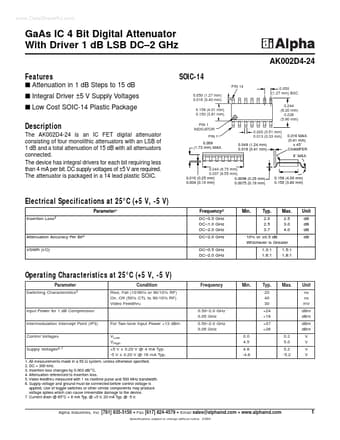

Preview of AK002D4-24 PDF

Datasheet Details

Part number:

AK002D4-24

Manufacturer:

Alpha Industries

File Size:

51.88 KB

Description:

Gaas ic 4 bit digital attenuator.
