AK002D2-24

GaAs IC 2 Bit Digital Attenuator

AK002D2-24 Features

* Attenuation in 16 dB Steps to 48 dB

* Integral Driver ±5 V Supply Voltages

* Low Cost SOIC-14 Plastic Package SOIC-14 PIN 14 0.050 (1.27 mm) 0.016 (0.40 mm) 0.158 (4.01 mm) 0.150 (3.81 mm) PIN 1 INDICATOR PIN 1 0.068 (1.73 mm) MAX. 0.050 (1.27 mm) BSC 0.244 (6.20 mm) 0.228 (5.80 mm) 0

AK002D2-24 General Description

The AK002D2-24 is an IC FET digital attenuator consisting of two monolithic attenuators with an LSB of 16 dB and a total attenuation of 48 dB with all attenuators connected. The device has integral drivers for each bit requiring < 3 mA per bit. DC supply voltages of ±5 V are required. 0.016 MAX. (0.

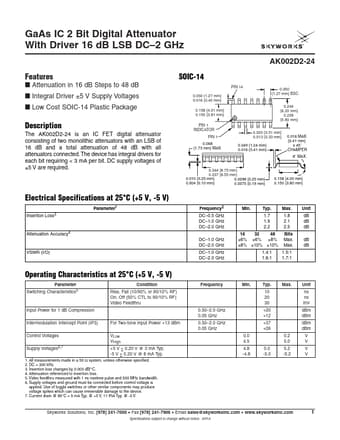

AK002D2-24 Datasheet (446.83 KB)

Preview of AK002D2-24 PDF

Datasheet Details

Part number:

AK002D2-24

Manufacturer:

Skyworks Solutions

File Size:

446.83 KB

Description:

Gaas ic 2 bit digital attenuator.
