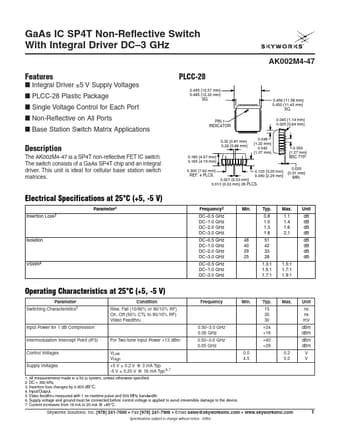

AK002M4-47

GaAs IC SP4T Non-Reflective Switch

AK002M4-47 Features

* Integral Driver ±5 V Supply Voltages

* PLCC-28 Plastic Package

* Single Voltage Control for Each Port

* Non-Reflective on All Ports

* Base Station Switch Matrix Applications PIN 1 INDICATOR PLCC-28 0.495 (12.57 mm) 0.485 (12.32 mm) SQ. 0.456 (11.58 mm) 0.450 (11.43 mm) SQ. 0.0

AK002M4-47 General Description

The AK002M4-47 is a SP4T non-reflective FET IC switch. The switch consists of a GaAs SP4T chip and an integral driver. This unit is ideal for cellular base station switch matrices. 0.180 (4.57 mm) 0.165 (4.19 mm) 0.300 (7.62 mm) REF. 4 PLCS. 0.32 (0.81 mm) 0.26 (0.66 mm) 0.048 (1.22 mm) 0.042 (1.0.
