AK002M2-12, GaAs IC SPDT Switch

GaAs IC SPDT Switch With Integral Driver Non-Reflective DC *2.5 GHz AK002M2-12 .
The GaAs FET IC SPDT non-reflective switch with integral driver is offered in the SOIC-8 package.

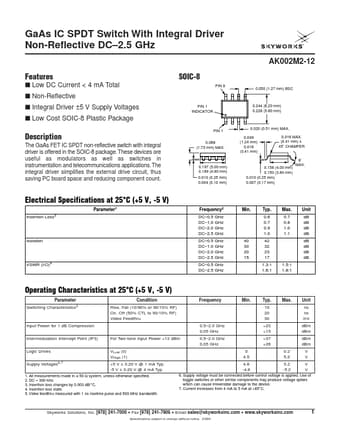

datasheet Preview Page 1 from Datasheet4u.com

AK002M2-12_SkyworksSolutions.pdf

AK002M2-12 Datasheet Preview — Preview of AK002M2-12 PDF

Datasheet Details

Part number:

AK002M2-12

Manufacturer:

Skyworks Solutions

File Size:

47.37 KB

Description:

GaAs IC SPDT Switch

Features

* Low DC Current < 4 mA Total
* Non-Reflective
* Integral Driver ±5 V Supply Voltages
* Low Cost SOIC-8 Plastic Package PIN 1 0.020 (0.51 mm) MAX. 0.049 (1.24 mm) 0.016 (0.41 mm) 0.016 MAX. (0.41 mm) x 45˚ CHAMFER PIN 1 INDICATOR 0.244 (6.20 mm) 0.228 (5.80 mm) SOIC-8 PIN 8 0.050 (1

Applications

* The integral driver simplifies the external drive circuit, thus saving PC board space and reducing component count. 0.068 (1.73 mm) MAX. 0.197 (5.00 mm) 0.189 (4.80 mm) 0.010 (0.25 mm) 0.004 (0.10 mm) 0.158 (4.00 mm) 0.150 (3.80 mm) 0.010 (0.25 mm) 0.007 (0.17 mm) 8˚ MAX. Electrical Specificati
