AK002D2-00

GaAs IC 2 Bit Digital Attenuator

AK002D2-00 Features

* s Integral Driver ±5 V Supply Voltages s Attenuation in 16 dB Steps to 48 dB s 100% On-Wafer DC Testing s Capable of Meeting MIL-STD-883 Requirements8 Description The AK002D2-00 is an IC FET digital attenuator consisting of two monolithic attenuators with an LSB of 16 dB and a total attenuation of

AK002D2-00 General Description

The AK002D2-00 is an IC FET digital attenuator consisting of two monolithic attenuators with an LSB of 16 dB and a total attenuation of 48 dB with all attenuators connected. This chip has integral drivers for each bit requiring less than 3 mA per bit. DC supply voltages of ±5 V are required. The att.

AK002D2-00 Datasheet (310.25 KB)

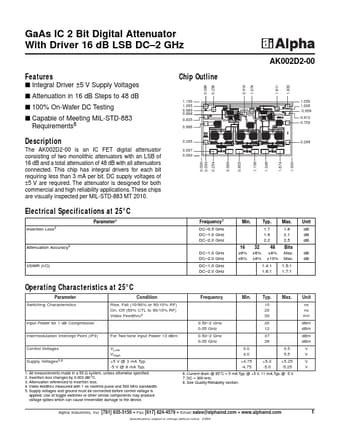

Preview of AK002D2-00 PDF

Datasheet Details

Part number:

AK002D2-00

Manufacturer:

Alpha Industries

File Size:

310.25 KB

Description:

Gaas ic 2 bit digital attenuator.
