AK004M2-11

GaAs IC SPDT Switch

AK004M2-11 Features

* s Integral Driver ±5 V Supply Voltages s High Isolation, Non-Reflective s 8 Lead Hermetic Surface Mount Package s Capable of Meeting MIL-STD Requirements7 Description The AK004M2-11 is a GaAs IC FET SPDT non-reflective switch with integral driver. It is useful as a modulator and switch in high relia

AK004M2-11 General Description

The AK004M2-11 is a GaAs IC FET SPDT non-reflective switch with integral driver. It is useful as a modulator and switch in high reliability and commercial applications. It is ideal as building blocks for high isolation, multithrow switches. The integral driver simplifies the external driver circuit,.

AK004M2-11 Datasheet (30.60 KB)

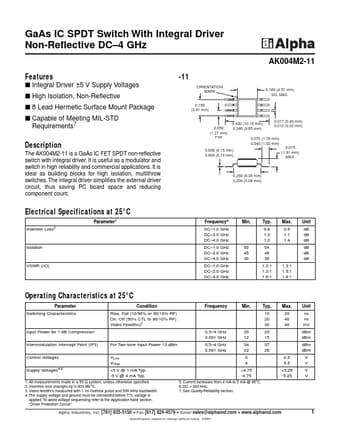

Preview of AK004M2-11 PDF

Datasheet Details

Part number:

AK004M2-11

Manufacturer:

Alpha Industries

File Size:

30.60 KB

Description:

Gaas ic spdt switch.
