AK8145, 27MHz VCXO Clock Genrator

ASAHI KASEI EMD CORPORATION 27.0MHz VCXO Clock Genrerator AK8145 .
The AK8145 is a low power, low jitter VCXO IC.

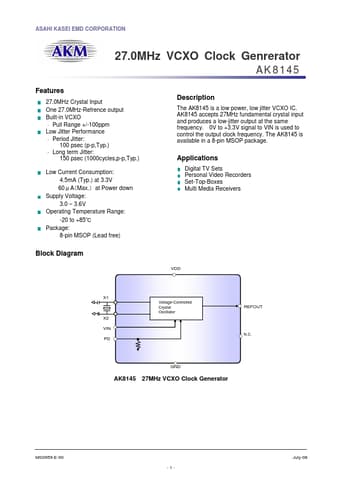

datasheet Preview Page 1 from Datasheet4u.com

AK8145-AKM.pdf

AK8145 Datasheet Preview — Preview of AK8145 PDF

Datasheet Details

Part number:

AK8145

Manufacturer:

AKM

File Size:

631.68 KB

Description:

27MHz VCXO Clock Genrator

Features

* 27.0MHz Crystal Input One 27.0MHz-Refrence output Built-in VCXO - Pull Range +/-100ppm Low Jitter Performance - Period Jitter: 100 psec (p-p,Typ. ) - Long term Jitter: 150 psec (1000cycles,p-p,Typ. ) Low Current Consumption: 4.5mA (Typ. ) at 3.3V 60μA（Max. ） at Power down Supply Voltage: 3.0
* 3

Applications

* Digital TV Sets Personal Video Recorders Set-Top-Boxes Multi Media Receivers Block Diagram VDD X1 Voltage-Controlled Crystal Oscillator REFOUT X2 VIN N. C. PD GND AK8145 27MHz VCXO Clock Generator MS0959-E-00 -1- July-08 http://www. Datasheet4U. com AK8145 The brand name of AKEMD’s IC’s Pin
