AK8146C Datasheet, Generator, AKM

AK8146C Features

  • Generator Pin Selectable External Input - 42.72527473MHz - 43.31250000MHz - 27.00MHz - 60.00MHz Clock out Frequencies: - 12.000MHz - 13.5MHz Low Jitter Performance - Period Jitter 125 psec (max)

PDF File Details

Part number:

AK8146C

Manufacturer:

AKM

File Size:

462.49kb

Download:

📄 Datasheet

Description:

Two outputs clock generator. The AK8146C is a low power multi clock generator which generates different frequency clocks from a external clock input. It provides

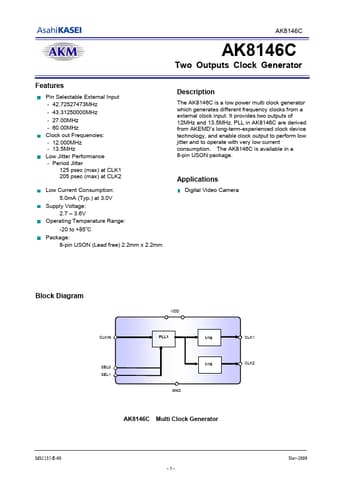

Datasheet Preview: AK8146C 📥 Download PDF (462.49kb)
Page 2 of AK8146C Page 3 of AK8146C

AK8146C Application

  • Applications Digital Video Camera Block Diagram VDD CLKIN PLL1 1/16 CLK1 SEL0 SEL1 1/18 CLK2 GND AK8146C Multi Clock Generator MS1135-E-
