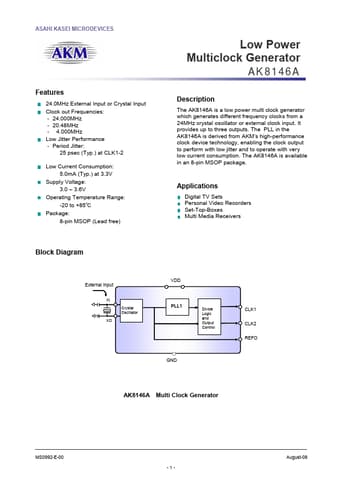

AK8146A Datasheet, Generator, AKM

AK8146A Features

• Generator 24.0MHz External Input or Crystal Input Clock out Frequencies: - 24.000MHz - 20.48MHz 4.000MHz Low Jitter Performance - Period Jitter: 25 psec (Typ.) at CLK1-2 Low Current Consumption:

PDF File Details

Part number:

AK8146A

Manufacturer:

AKM

File Size:

616.21kb

Download:

📄 Datasheet

Description:

Multi clock generator. The AK8146A is a low power multi clock generator which generates different frequency clocks from a 24MHz crystal oscillator or extern

AK8146A Application

• Applications Digital TV Sets Personal Video Recorders Set-Top-Boxes Multi Media Receivers Block Diagram External Input XI Crystal Oscillator XO V
