AP100N03T, AP100N03P Datasheet - APM

AP100N03T 30V N-Channel Enhancement Mode MOSFET

AP100N03P/T 30V N-Channel Enhancement Mode MOSFET The AP100N03P/T uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Featur.

AP100N03T Features

* VDS = 30V ID =100 A RDS(ON) < 5.5mΩ @ VGS=10V （Type：4.5mΩ） Application Battery protection Load switch Uninterruptible power supply Package Marking and Ordering Information Product ID Pack AP100N03P TO-220-3L AP100N03T TO-263-3L Marking AP100N03P XXX YYYY AP100N03T XXX YYYY Absolute Maxi

AP100N03P-APM.pdf

This datasheet PDF includes multiple part numbers: AP100N03T, AP100N03P. Please refer to the document for exact specifications by model.

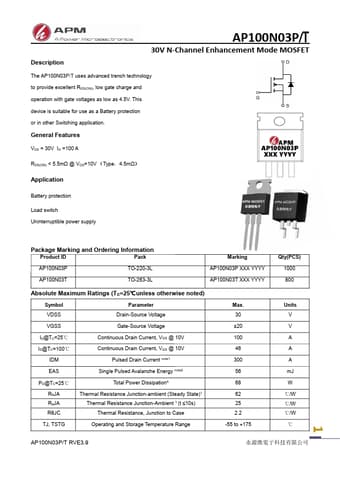

AP100N03T Datasheet Preview Page 2 AP100N03T Datasheet Preview Page 3

Datasheet Details

Part number:

AP100N03T, AP100N03P

Manufacturer:

APM

File Size:

1.41 MB

Description:

30v n-channel enhancement mode mosfet.

Note:

This datasheet PDF includes multiple part numbers: AP100N03T, AP100N03P.
Please refer to the document for exact specifications by model.
