AP100N06NF Datasheet - APM

60V N-Channel Enhancement Mode MOSFET

AP100N06NF Features

* VDS = 60V ID =100A RDS(ON) < 4.5mΩ @ VGS=10V （Type：3.5mΩ） Application Battery protection UPS Package Marking and Ordering Information Product ID Pack AP100N06NF PDFN5

* 6-8L Marking AP100N06NF XXX YYYY Absolute Maximum Ratings (TC=25℃unless otherwise noted) Symbol Parameter VDS Drai

AP100N06NF General Description

AP100N06NF 60V N-Channel Enhancement Mode MOSFET The AP100N06NF uses advanced APM-SGT II technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Feat.

AP100N06NF Datasheet (1.46 MB)

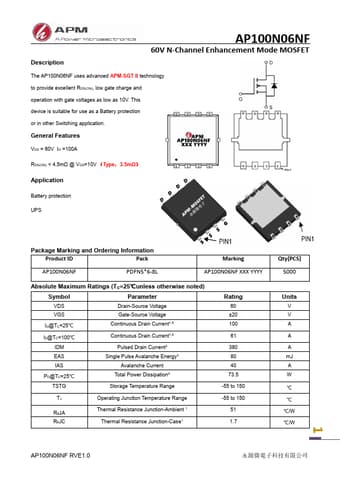

AP100N06NF Datasheet Preview — Preview of AP100N06NF PDF

Datasheet Details

Part number:

AP100N06NF

Manufacturer:

APM

File Size:

1.46 MB

Description:

60v n-channel enhancement mode mosfet.
