AP2P15MI - -150V P-Channel Enhancement Mode MOSFET

APM

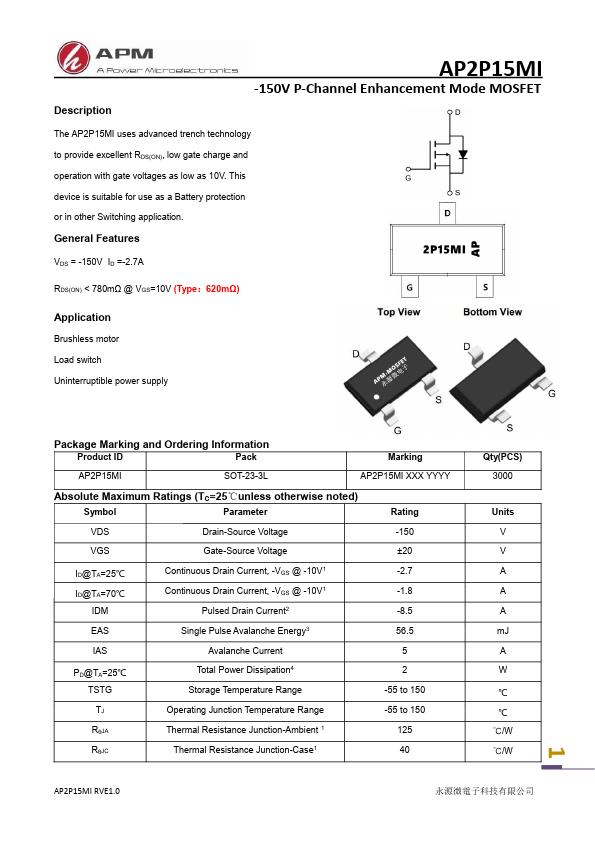

The AP2P15MI by APM is a -150V P-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

AP2P15MI -150V P-Channel Enhancement Mode MOSFET by APM - Datasheet Preview — Official preview page of the **AP2P15MI** -150V P-Channel Enhancement Mode MOSFET datasheet (APM).

Datasheet Details

Part number	AP2P15MI
Manufacturer	APM
File Size	1.08 MB
Description	-150V P-Channel Enhancement Mode MOSFET
Datasheet	AP2P15MI-APM.pdf

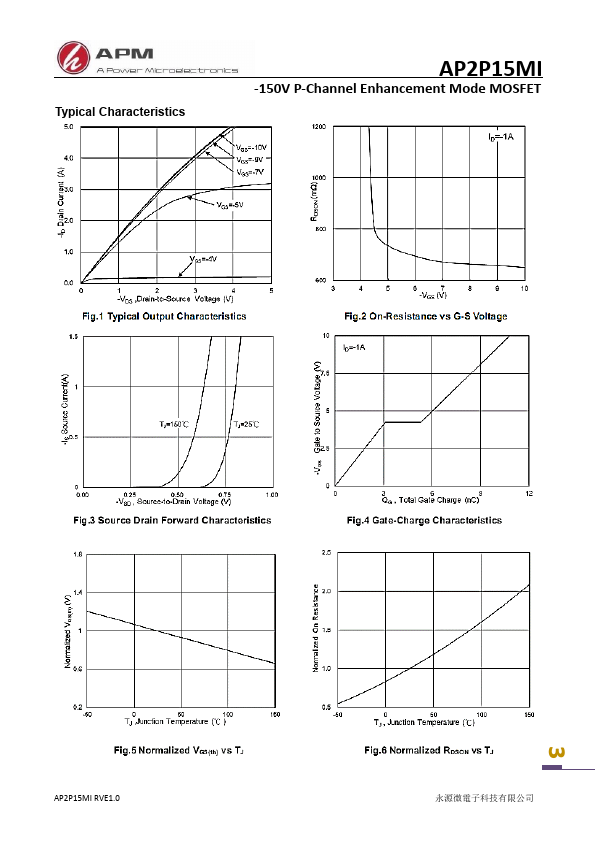

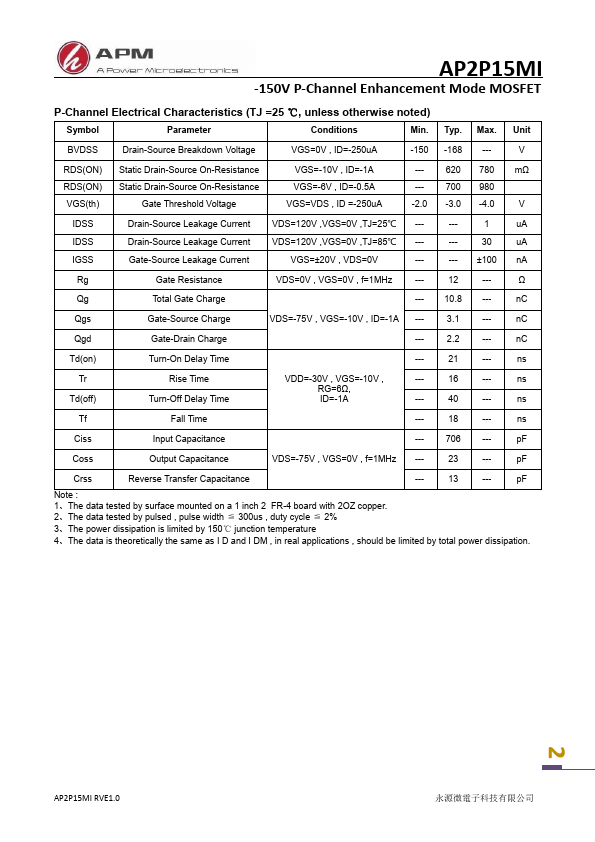

Additional preview pages of the AP2P15MI datasheet.

AP2P15MI Product details

Description

AP2P15MI -150V P-Channel Enhancement Mode MOSFET The AP2P15MI uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 10V.This device is suitable for use as a Battery protection or in other Switching application.General

Features

VDS = -150V ID =-2.7A RDS(ON) < 780mΩ @ VGS=10V (Type：620mΩ).
