MT5C1005 - SRAM MEMORY ARRAY

ASI

📥 Download Datasheet

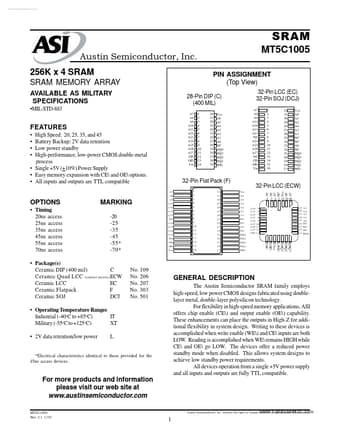

MT5C1005 Datasheet Preview — Preview of MT5C1005 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MT5C1005
Manufacturer	ASI
File Size	181.47 KB
Description	SRAM MEMORY ARRAY
Datasheet	MT5C1005_ASI.pdf

MT5C1005 Product details

Description

The Austin Semiconductor SRAM family employs high-speed, low power CMOS designs fabricated using doublelayer metal, double-layer polysilicon technology.

Features

High Speed: 20, 25, 35, and 45 Battery Backup: 2V data retention Low power standby High-performance, low-power CMOS double-metal process.
Single +5V (+10%) Power Supply.
Easy memory expansion with CE and OE options.
All inputs and outputs are TTL compatible A7 A8 A9 A12 A10 A11 A13 NC A14 A15 A16 A17 NC CE OE Vss 32-Pin Flat Pack (F) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 Vcc A6 A.
