MT5C128K8A1 128K x 8 SRAM

Micron Technology

Description

www.DataSheet4U.com SEMICONDUCTOR, INC.MT5C128K8A1 REVOLUTIONARY PINOUT 128K x 8 SRAM SRAM .
The MT5C128K8A1 is organized as a 131,072 x 8 SRAM using a four-transistor memory cell with a high-speed, lowpower CMOS process.

📥 Download Datasheet

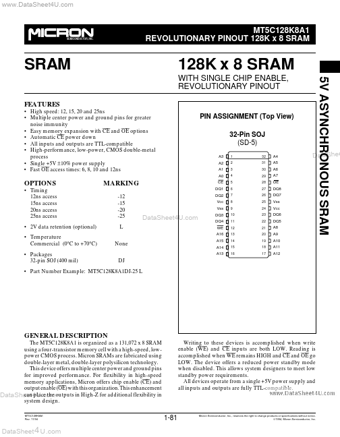

MT5C128K8A1 Datasheet Preview — Preview of MT5C128K8A1 PDF

Datasheet Specifications

Part number: MT5C128K8A1
Manufacturer: Micron Technology
File Size: 263.25 KB
Datasheet: MT5C128K8A1_MicronTechnology.pdf
Description: 128K x 8 SRAM

Features

* High speed: 12, 15, 20 and 25ns
* Multiple center power and ground pins for greater noise immunity
* Easy memory expansion with ?C/E and ?O/E options
* Automatic ?C/E power down
* All inputs and outputs are TTL-compatible
* High-performance, low-powe

Applications

* Micron offers chip enable (?C/E) and output enable (?OE / ) with this organization. This enhancement can place the outputs in High-Z for additional flexibility in DataSheet4U. com system design. MT5C128K8A1 Rev. 11/94 Writing to these devices is accomplished when write enable (?W/E) and ?C/E inputs
