AT17N010, FPGA Configuration Memory

.
The AT17N series FPGA Configuration EEPROM (Configurators) provide an easy-touse, cost-effective configuration memory for Field Programmable Gate Arra.

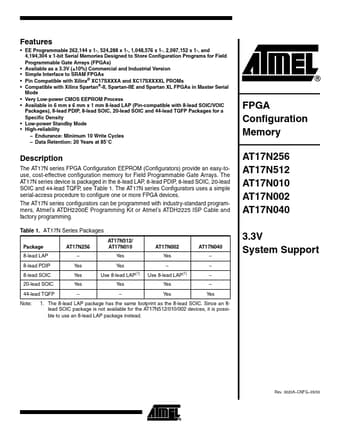

datasheet Preview Page 1 from Datasheet4u.com

AT17N010_ATMELCorporation.pdf

AT17N010 Datasheet Preview — Preview of AT17N010 PDF

Datasheet Details

Part number:

AT17N010

Manufacturer:

ATMEL Corporation

File Size:

205.26 KB

Description:

FPGA Configuration Memory

Features

* EE Programmable 262,144 x 1-, 524,288 x 1-, 1,048,576 x 1-, 2,097,152 x 1-, and
* 4,194,304 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs) Available as

Applications

* RESET should be programmed active Low. This document describes the pin as RESET/OE. Chip Enable input (active Low). A Low level (with OE High) allows CLK to increment the address counter and enables the data output driver. A High level on CE disables both the address and bit counters and forces the
