AT17N040 FPGA Configuration Memory

ATMEL Corporation

Description

.
The AT17N series FPGA Configuration EEPROM (Configurators) provide an easy-touse, cost-effective configuration memory for Field Programmable Gate Arra.

📥 Download Datasheet

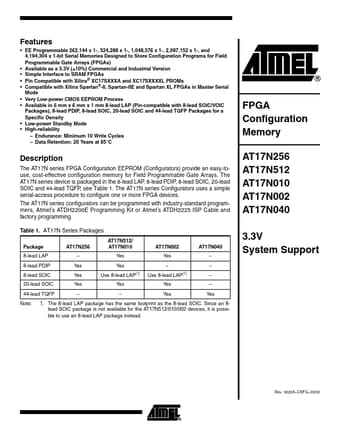

AT17N040 Datasheet Preview — Preview of AT17N040 PDF

Datasheet Specifications

Part number: AT17N040
Manufacturer: ATMEL Corporation
File Size: 205.26 KB
Datasheet: AT17N040_ATMELCorporation.pdf
Description: FPGA Configuration Memory

Features

* EE Programmable 262,144 x 1-, 524,288 x 1-, 1,048,576 x 1-, 2,097,152 x 1-, and
* 4,194,304 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs) Available as

Applications

* RESET should be programmed active Low. This document describes the pin as RESET/OE. Chip Enable input (active Low). A Low level (with OE High) allows CLK to increment the address counter and enables the data output driver. A High level on CE disables both the address and bit counters and forces the
