AT25F512B

512-Kilobit 2.7-volt Minimum SPI Serial Flash Memory

AT25F512B Features

* www.DataSheet4U.com

* Single 2.7V - 3.6V Supply

* Serial Peripheral Interface (SPI) Compatible

* Supports SPI Modes 0 and 3

* 70 MHz Maximum Operating Frequency

* Clock-to-Output (tV) of 6 ns Maximum

* Flexible, Optimized Erase Architecture for Code

AT25F512B General Description

The AT25F512B is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the AT25F512B, with its erase gran.

AT25F512B Datasheet (904.07 KB)

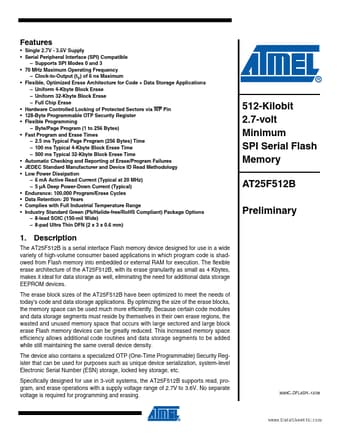

Preview of AT25F512B PDF

Datasheet Details

Part number:

AT25F512B

Manufacturer:

ATMEL Corporation

File Size:

904.07 KB

Description:

512-kilobit 2.7-volt minimum spi serial flash memory.
