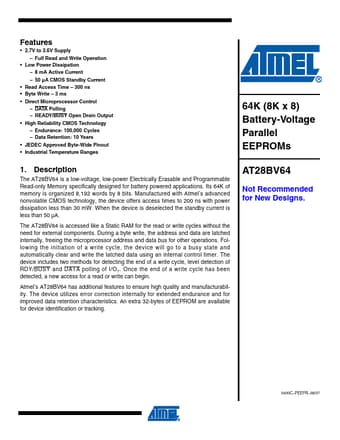

AT28BV64 Datasheet, Eeproms, ATMEL Corporation

AT28BV64 Features

• Eeproms
• 2.7V to 3.6V Supply
    – Full Read and Write Operation
• Low Power Dissipation
    – 8 mA Active Current
    – 50 µA CMOS Standby

PDF File Details

Part number:

AT28BV64

Manufacturer:

ATMEL Corporation

File Size:

176.30kb

Download:

📄 Datasheet

Description:

64k (8k x 8) battery-voltage parallel eeproms. The AT28BV64 is a low-voltage, low-power Electrically Erasable and Programmable Read-only Memory specifically designed for battery po

AT28BV64 Application

• Applications Its 64K of memory is organized 8,192 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offer

TAGS

AT28BV64

ATMEL Corporation
