AT45D021 - 2-Megabit 5-volt Only Serial DataFlash

Product Overview

ATMEL Corporation

📥 Download Datasheet

AT45D021 2-Megabit 5-volt Only Serial DataFlash by ATMEL Corporation - Datasheet Preview — Datasheet preview – AT45D021

Datasheet Details

Part number	AT45D021
Manufacturer	ATMEL Corporation
File Size	200.42 KB
Description	2-Megabit 5-volt Only Serial DataFlash
Datasheet	AT45D021 Datasheet
Note	This datasheet PDF includes multiple part numbers: AT45D021, AT4-5D0. Please refer to the document for exact specifications by model.

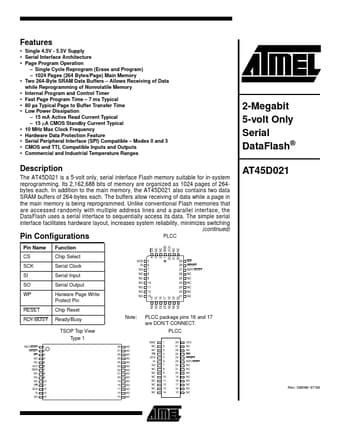

Additional preview pages of the AT45D021 datasheet.

Product details

Description

The AT45D021 is a 5-volt only, serial interface Flash memory suitable for in-system reprogramming.

Features

Single 4.5V - 5.5V Supply.
Serial Interface Architecture.
Page Program Operation.
Single Cycle Reprogram (Erase and Program).
1024 Pages (264 Bytes/Page) Main Memory Two 264-Byte SRAM Data Buffers.
Allows Receiving of Data while Reprogramming of Nonvolatile Memory Internal Program and Control Timer Fast Page Program Time.
7 ms Typical.
