AT45D081A - 8-megabit 5-volt Only Serial DataFlash

AT45D081A Description

.
The AT45D081A is a 5-volt only, serial interface Flash memory suitable for in-system reprogramming.

AT45D081A Features

* 100% Compatible to AT45D081 Single 4.5V - 5.5V Supply Serial Interface Architecture Page Program Operation
* Single Cycle Reprogram (Erase and Program)

AT45D081A Applications

* where high density, low pin count, low voltage, and low power are essential. Typical applications for the DataFlash are digital voice storage, image storage, and data storage. The device operates at clock frequencies up to 15 MHz with a typical active read current consumption of 15 mA. To allow for

📥 Download Datasheet

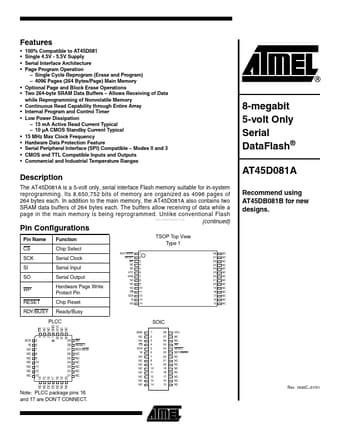

Preview of AT45D081A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT45D081A
Manufacturer
ATMEL Corporation
File Size
433.99 KB
Datasheet
AT45D081A_ATMELCorporation.pdf
Description
8-megabit 5-volt Only Serial DataFlash
