AT45D041A Datasheet - ATMEL Corporation

4-megabit 5-volt Only Serial DataFlash

AT45D041A Features

* 100% Compatible to AT45D041 Single 4.5V - 5.5V Supply Serial Interface Architecture Page Program Operation

* Single Cycle Reprogram (Erase and Program)

AT45D041A General Description

The AT45D041A is a 5-volt only, serial interface Flash memory suitable for insystem reprogramming. Its 4,325,376 bits of memory are organized as 2048 pages of 264 bytes each. In addition to the main memory, the AT45D041A also contains two SRAM data buffers of 264 bytes each. The buffers allow receiv.

AT45D041A Datasheet (423.85 KB)

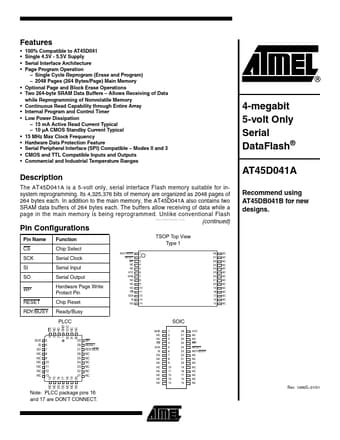

AT45D041A Datasheet Preview — Preview of AT45D041A PDF

Datasheet Details

Part number:

AT45D041A

Manufacturer:

ATMEL Corporation

File Size:

423.85 KB

Description:

4-megabit 5-volt only serial dataflash.
