AT45D081 - 8-Megabit 5-volt Only Serial DataFlash

Product Overview

ATMEL Corporation

📥 Download Datasheet

AT45D081 8-Megabit 5-volt Only Serial DataFlash by ATMEL Corporation - Datasheet Preview — Datasheet preview – AT45D081

Datasheet Details

Part number	AT45D081
Manufacturer	ATMEL Corporation
File Size	115.28 KB
Description	8-Megabit 5-volt Only Serial DataFlash
Datasheet	AT45D081 Datasheet
Note	This datasheet PDF includes multiple part numbers: AT45D081, AT4-5D0. Please refer to the document for exact specifications by model.

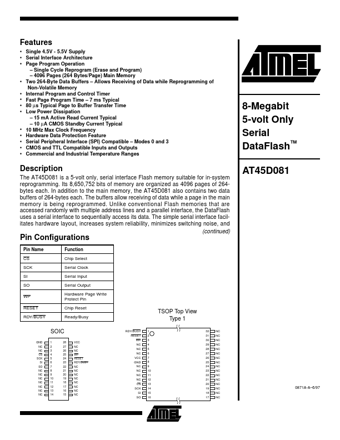

Additional preview pages of the AT45D081 datasheet.

Product details

Description

The AT45D081 is a 5-volt only, serial interface Flash memory suitable for in-system reprogramming.

Features

Single 4.5V - 5.5V Supply.
Serial Interface Architecture.
Page Program Operation.
Single Cycle Reprogram (Erase and Program).
4096 Pages (264 Bytes/Page) Main Memory Two 264-Byte Data Buffers.
Allows Receiving of Data while Reprogramming of Non-Volatile Memory Internal Program and Control Timer Fast Page Program Time.
7 ms Typical 80.
