AT45DCB002D Datasheet - ATMEL Corporation

AT45DCB002D (AT45DCB002D - AT45DCB008D) DataFlash Cards

The AT45DCB008D, AT45DCB004D and AT45DCB002D are 2.7-volt only SPI compatible serial interface DataFlash® Cards. They are offered in 8-megabyte (64-Mbit), 4-megabyte (32-Mbit) and 2-megabyte (16-Mbit) densities. These 7-pin cards are form factor compatible to the MultiMediaCard standard leveraging o.

AT45DCB002D Features

* MultiMediaCard (MMC) Form Factor Single 2.7V to 3.6V Supply 66 MHz Max Clock Frequency Serial Peripheral Interface (SPI) Compatible Low Power Dissipation

* 10 mA Active Read Current Typical

* 25 µA CMOS Standby Current Typical

AT45DCB002D_ATMELCorporation.pdf

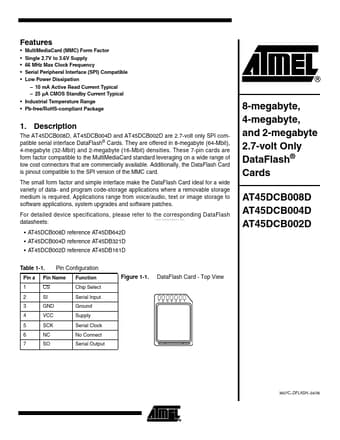

Preview of AT45DCB002D PDF
AT45DCB002D Datasheet Preview Page 2 AT45DCB002D Datasheet Preview Page 3

Datasheet Details

Part number:

AT45DCB002D

Manufacturer:

ATMEL Corporation

File Size:

103.69 KB

Description:

(at45dcb002d - at45dcb008d) dataflash cards.
