AT45DCB004C Datasheet - ATMEL Corporation

AT45DCB004C 4-megabyte 2.7-volt DataFlash Card

The AT45DCB004C is 2.7-volt SPI compatible serial interface DataFlash® Card. This 7-pin card is form factor compatible to the MultiMediaCard standard leveraging on a wide range of low cost connectors that are commercially available. Additionally, the DataFlash Card is pinout compatible to the SPI ve.

AT45DCB004C Features

* MultiMediaCard (MMC) Form Factor Single 2.7V to 3.6V Supply 40 MHz Max Clock Frequency Serial Peripheral Interface (SPI) Compatible Low Power Dissipation

* 10mA Active Read Current Typical

* 6µA CMOS Standby Current Typical

AT45DCB004C_ATMELCorporation.pdf

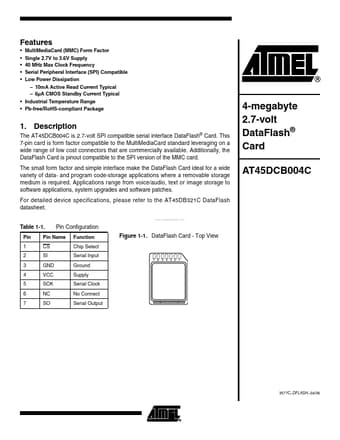

Preview of AT45DCB004C PDF
AT45DCB004C Datasheet Preview Page 2 AT45DCB004C Datasheet Preview Page 3

Datasheet Details

Part number:

AT45DCB004C

Manufacturer:

ATMEL Corporation

File Size:

101.81 KB

Description:

4-megabyte 2.7-volt dataflash card.
