AT45DCB008

(AT45DCB002 - AT45DCB008) DataFlash Cards

AT45DCB008 Features

* MultiMediaCard (MMC) Form Factor Single 2.7V to 3.6V Supply 20 MHz Max Clock Frequency Serial Peripheral Interface (SPI) Compatible Low Power Dissipation

* 4 mA Active Read Current Typical

* 2 µA CMOS Standby Current Typical

AT45DCB008 General Description

The AT45DCB008, AT45DCB004 and AT45DCB002 are 2.7-volt only SPI compatible serial interface DataFlash® Cards. They are offered in 8-megabyte (64-Mbit), 4-megabyte (32-Mbit) and 2-megabyte (16-Mbit) densities. These 7-pin cards are form factor compatible to the MultiMediaCard standard leveraging on a.

AT45DCB008 Datasheet (103.46 KB)

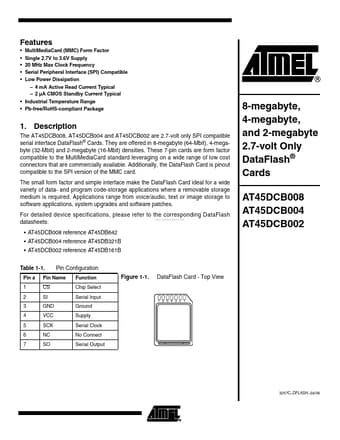

Preview of AT45DCB008 PDF

Datasheet Details

Part number:

AT45DCB008

Manufacturer:

ATMEL Corporation

File Size:

103.46 KB

Description:

(at45dcb002 - at45dcb008) dataflash cards.
