AT45DCB004, AT45DCB002 Datasheet - ATMEL Corporation

AT45DCB004 (AT45DCB002 - AT45DCB008) DataFlash Cards

The AT45DCB008, AT45DCB004 and AT45DCB002 are 2.7-volt only SPI compatible serial interface DataFlash® Cards. They are offered in 8-megabyte (64-Mbit), 4-megabyte (32-Mbit) and 2-megabyte (16-Mbit) densities. These 7-pin cards are form factor compatible to the MultiMediaCard standard leveraging on a.

AT45DCB004 Features

* MultiMediaCard (MMC) Form Factor Single 2.7V to 3.6V Supply 20 MHz Max Clock Frequency Serial Peripheral Interface (SPI) Compatible Low Power Dissipation

* 4 mA Active Read Current Typical

* 2 µA CMOS Standby Current Typical

AT45DCB002_ATMELCorporation.pdf

This datasheet PDF includes multiple part numbers: AT45DCB004, AT45DCB002. Please refer to the document for exact specifications by model.

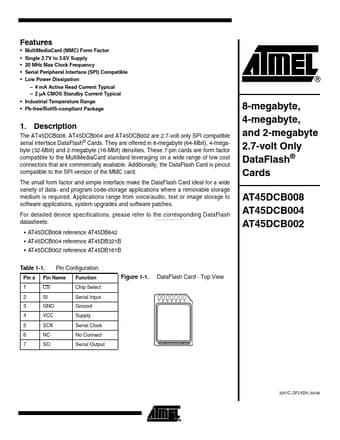

AT45DCB004 Datasheet Preview Page 2 AT45DCB004 Datasheet Preview Page 3

Datasheet Details

Part number:

AT45DCB004, AT45DCB002

Manufacturer:

ATMEL Corporation

File Size:

103.46 KB

Description:

(at45dcb002 - at45dcb008) dataflash cards.

Note:

This datasheet PDF includes multiple part numbers: AT45DCB004, AT45DCB002.
Please refer to the document for exact specifications by model.
