FCD4B14CC

Thermal Fingerprint Sensor with 0.4 mm x 14 mm Sensing Area and Digital Output

FCD4B14CC Features

* Sensitive Layer Over a 0.8 µm CMOS Array Image Zone: 0.4 x 14 mm = 0.02" x 0.55" Image Array: 8 x 280 = 2240 pixels Pixel Pitch: 50 µm x 50 µm = 500 dpi Pixel Clock: up to 2 MHz En

FCD4B14CC General Description

For DIP Ceramic Package Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Name GND AVE TPP VCC RST OE De0 De1 De2 De3 FPL Do3 Do2 Do1 Do0 GND ACKN PCLK TPE AVO Type GND Analog output Power Power Digital input Digital input Digital output Digital output Digital output Digital output GND D.

FCD4B14CC Datasheet (265.98 KB)

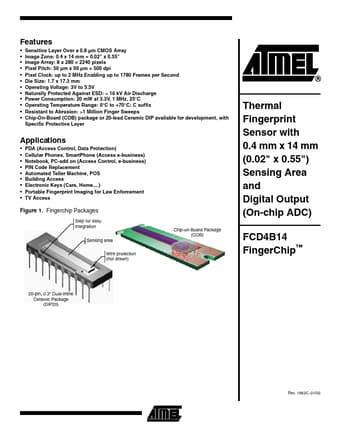

Preview of FCD4B14CC PDF

Datasheet Details

Part number:

FCD4B14CC

Manufacturer:

ATMEL Corporation

File Size:

265.98 KB

Description:

Thermal fingerprint sensor with 0.4 mm x 14 mm sensing area and digital output.
