FCD4B14CCB Datasheet - ATMEL Corporation

FCD4B14CCB Thermal Fingerprint Sensor with 0.4 mm x 14 mm Sensing Area and Digital Output

For DIP Ceramic Package Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Name GND AVE TPP VCC RST OE De0 De1 De2 De3 FPL Do3 Do2 Do1 Do0 GND ACKN PCLK TPE AVO Type GND Analog output Power Power Digital input Digital input Digital output Digital output Digital output Digital output GND D.

FCD4B14CCB Features

* Sensitive Layer Over a 0.8 µm CMOS Array Image Zone: 0.4 x 14 mm = 0.02" x 0.55" Image Array: 8 x 280 = 2240 pixels Pixel Pitch: 50 µm x 50 µm = 500 dpi Pixel Clock: up to 2 MHz En

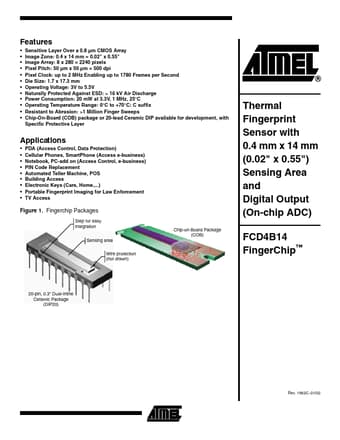

FCD4B14CCB_ATMELCorporation.pdf

Preview of FCD4B14CCB PDF
FCD4B14CCB Datasheet Preview Page 2 FCD4B14CCB Datasheet Preview Page 3

Datasheet Details

Part number:

FCD4B14CCB

Manufacturer:

ATMEL Corporation

File Size:

265.98 KB

Description:

Thermal fingerprint sensor with 0.4 mm x 14 mm sensing area and digital output.
