FCD260N65S3 Datasheet, Mosfet, ON Semiconductor

FCD260N65S3 Features

  • Mosfet
  • 700 V @ TJ = 150°C
  • Typ. RDS(on) = 222 mW
  • Ultra Low Gate Charge (Typ. Qg = 24 nC)
  • Low Effective Output Capacitance (Typ. Coss(eff.) = 248 pF)

PDF File Details

Part number:

FCD260N65S3

Manufacturer:

ON Semiconductor ↗

File Size:

411.08kb

Download:

📄 Datasheet

Description:

N-channel mosfet. SUPERFET III MOSFET is ON Semiconductor’s brand-new high voltage super-junction (SJ) MOSFET family that is utilizing charge balance t

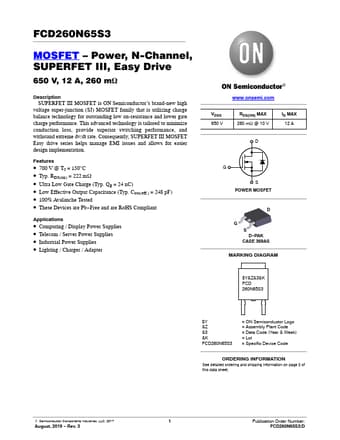

Datasheet Preview: FCD260N65S3 📥 Download PDF (411.08kb)
Page 2 of FCD260N65S3 Page 3 of FCD260N65S3

FCD260N65S3 Application

  • Applications
  • Computing / Display Power Supplies
  • Telecom / Server Power Supplies
  • Industrial Power Supplies
  • Li
