AT24C16C - EEPROM

Product Overview

ATMEL

📥 Download Datasheet

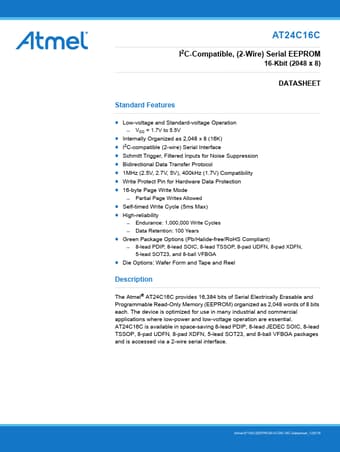

AT24C16C EEPROM by ATMEL - Datasheet Preview — Datasheet preview – AT24C16C

Datasheet Details

Part number	AT24C16C
Manufacturer	ATMEL
File Size	530.23 KB
Description	EEPROM
Datasheet	AT24C16C Datasheet
Additional preview pages of the AT24C16C datasheet.

Product details

Description

The Atmel® AT24C16C provides 16,384 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 2,048 words of

Features

Low-voltage and Standard-voltage Operation ̶ VCC = 1.7V to 5.5V.
Internally Organized as 2,048 x 8 (16K).
I2C-compatible (2-wire) Serial Interface.
Schmitt Trigger, Filtered Inputs for Noise Suppression.
Bidirectional Data Transfer Protocol.
1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) Compatibility.
Write Protect Pin for Hardware Data Protection.
16-byte Page Write Mode ̶ Partial Page Writes Allowed.
Self-timed Write Cycle (5ms Max).
High-reliability ̶.
