AT29LV256 - 256K (32K x 8) 3-volt Only Flash Memory

Product Overview

ATMEL

Datasheet Details

Part number	AT29LV256
Manufacturer	ATMEL
File Size	137.34 KB
Description	256K (32K x 8) 3-volt Only Flash Memory
Datasheet	AT29LV256 Datasheet

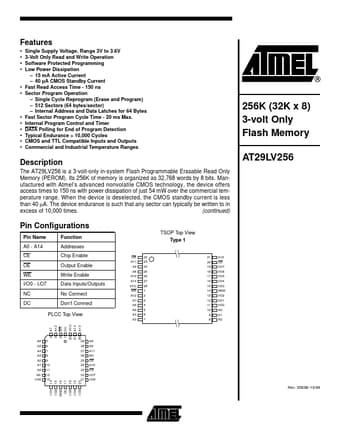

Additional preview pages of the AT29LV256 datasheet.

Product details

Description

The AT29LV256 is a 3-volt-only in-system Flash Programmable Erasable Read Only Memory (PEROM).Its 256K of memory is organized as 32,768 words by 8 bits.Man- ufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 150 ns with power dissipation of just 54 mW over the

Features

Single Supply Voltage, Range 3V to 3.6V.
3-Volt Only Read and Write Operation.
Software Protected Programming.
Low Power Dissipation.
15 mA Active Current.
40 µA CMOS Standby Current.
Fast Read Access Time - 150 ns.
Sector Program Operation.
Single Cycle Reprogram (Erase and Program).
512 Sectors (64 bytes/sector).
Internal Address and Data Latches for 64 Bytes.
Fast Sector Program Cycle.
