AT29LV020

2-megabit (256K x 8) 3-volt Only Flash Memory

AT29LV020 Features

* Single Voltage, Range 3V to 3.6V Supply 3-volt Only Read and Write Operation Software Protected Programming Fast Read Access Time

* 100 ns Low Power Dissipation

* 15 mA Active Current

* 50 µA CMOS Standby Current Sector Progra

AT29LV020 General Description

The AT29LV020 is a 3-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 2 megabits of memory is organized as 262,144 bytes by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 100 ns with power dissipation of just.

AT29LV020 Datasheet (462.20 KB)

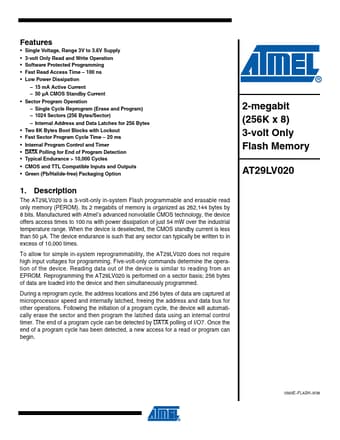

Preview of AT29LV020 PDF

Datasheet Details

Part number:

AT29LV020

Manufacturer:

ATMEL Corporation

File Size:

462.20 KB

Description:

2-megabit (256k x 8) 3-volt only flash memory.
