AT29LV040A - 4-megabit (512K x 8) 3-volt Only 256-byte Sector Flash Memory

Product Overview

ATMEL Corporation

Part number	AT29LV040A
Manufacturer	ATMEL Corporation
File Size	669.60 KB
Description	4-megabit (512K x 8) 3-volt Only 256-byte Sector Flash Memory
Datasheet	AT29LV040A Datasheet

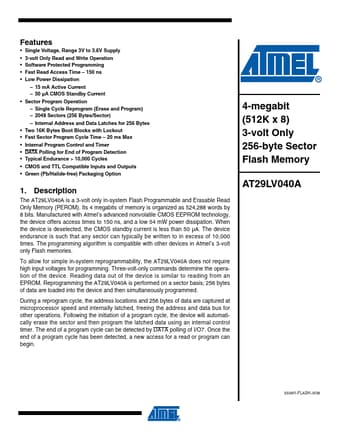

Additional preview pages of the AT29LV040A datasheet.

The AT29LV040A is a 3-volt only in-system Flash Programmable and Erasable Read Only Memory (PEROM).

Single Voltage, Range 3V to 3.6V Supply 3-volt Only Read and Write Operation Software Protected Programming Fast Read Access Time.
150 ns Low Power Dissipation.
15 mA Active Current.
50 µA CMOS Standby Current Sector Program Operation.
Single Cycle Reprogram (Erase and Program).
2048 Sectors (256 Bytes/Sector).
Internal Address and Data Latches for 256 Bytes Two 16K Bytes Boot Blocks with Lock.
