AT29LV512 - 512K 64K x 8 3-volt Only CMOS Flash Memory

Product Overview

ATMEL Corporation

Part number	AT29LV512
Manufacturer	ATMEL Corporation
File Size	484.59 KB
Description	512K 64K x 8 3-volt Only CMOS Flash Memory
Datasheet	AT29LV512 Datasheet
Note	This datasheet PDF includes multiple part numbers: AT29LV512, AT2-9LV. Please refer to the document for exact specifications by model.

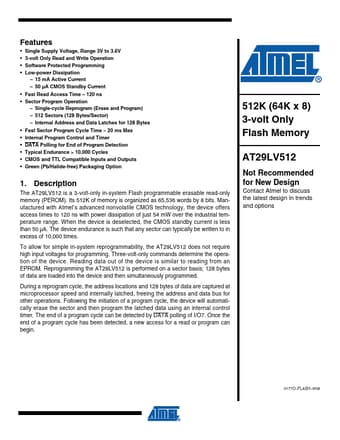

Additional preview pages of the AT29LV512 datasheet.

The AT29LV512 is a 3-volt-only in-system Flash programmable erasable read only memory (PEROM).

Single Supply Voltage, Range 3V to 3.6V 3-Volt-Only Read and Write Operation Software Protected Programming Low Power Dissipation 15 mA Active Current 20 µA CMOS Standby Current Fast Read Access Time - 200 ns Sector Program Operation Single Cycle Reprogram (Erase and Program) 512 Sectors (128 bytes/sector) Internal Address and Data Latches for 128-Bytes Fast Sector Program Cy.
