AT29LV010A

1 Megabit 128K x 8 3-volt Only CMOS Flash

AT29LV010A Features

* Single Supply Voltage, Range 3V to 3.6V 3-volt Only Read and Write Operation Software Protected Programming Fast Read Access Time - 120 ns Low Power Dissipation

* 15 mA Active Current

* 40 µA CMOS Standby Current Sector Prog

AT29LV010A General Description

The AT29LV010A is a 3-volt only in-system Flash programmable and erasable read only memory (Flash). Its 1 megabit of memory is organized as 131,072 bytes by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 120 ns with power dissipation of just.

AT29LV010A Datasheet (284.89 KB)

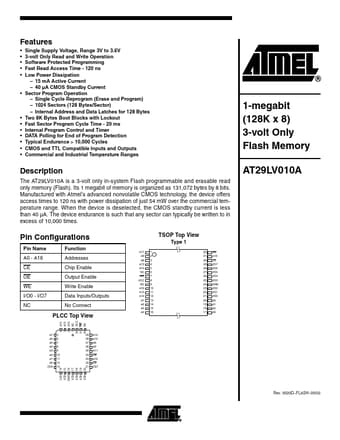

Preview of AT29LV010A PDF

Datasheet Details

Part number:

AT29LV010A

Manufacturer:

ATMEL Corporation

File Size:

284.89 KB

Description:

1 megabit 128k x 8 3-volt only cmos flash.
