AT90USB128X Datasheet - ATMEL

USB DFU Bootloader

AT90USB128X Features

* USB Protocol

* Based on the USB DFU class

* Autobaud (8/16 MHz crystal)

* In-System Programming

* Read/Write Flash and EEPROM on-chip memories

* Read Device ID

* Full chip Erase

* Start application command

* In-Application Pro

AT90USB128X General Description

The 8bits mega AVR with USB interface devices are factory configured with a USB bootloader located in the on-chip flash boot section of the controller. This USB bootloader allows to perform In-System Programming from an USB host controller without removing the part from the system or without a pre-p.

AT90USB128X Datasheet (199.17 KB)

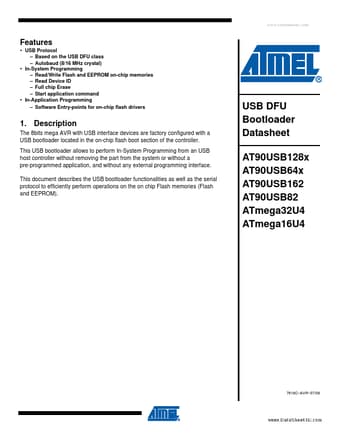

AT90USB128X Datasheet Preview — Preview of AT90USB128X PDF

Datasheet Details

Part number:

AT90USB128X

Manufacturer:

ATMEL

File Size:

199.17 KB

Description:

Usb dfu bootloader.
