AT90USB64x, AT90USB128X - USB DFU Bootloader

Name: AT90USB64x
SKU: AT90USB64x-680079

ATMEL

📥 Download Datasheet

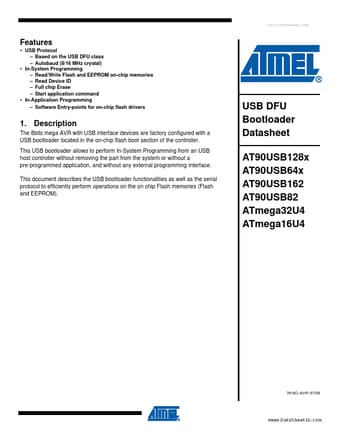

AT90USB64x Datasheet Preview — This datasheet PDF includes multiple part numbers: AT90USB64x, AT90USB128X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AT90USB64x, AT90USB128X
Manufacturer	ATMEL
File Size	199.17 KB
Description	USB DFU Bootloader
Datasheet	AT90USB128X_ATMEL.pdf
Note	This datasheet PDF includes multiple part numbers: AT90USB64x, AT90USB128X. Please refer to the document for exact specifications by model.

AT90USB64x Product details

Description

The 8bits mega AVR with USB interface devices are factory configured with a USB bootloader located in the on-chip flash boot section of the controller.

Features

USB Protocol.
Based on the USB DFU class.
Autobaud (8/16 MHz crystal).
In-System Programming.
Read/Write Flash and EEPROM on-chip memories.
Read Device ID.
Full chip Erase.
Start.
