SUM202MN - P-Channel MOSFET + PNP BJT

SUM202MN Description

SUM202MN P-Channel MOSFET + PNP BJT Integrated Power MOSFET with PNP Low VCE(sat) Switching Transistor DFN-8 This integrated device represents a .

SUM202MN Features

* Low RDS(on) (MOSFET) and Low VCE(sat) (Transistor)
* Higher Efficiency Extending Battery Life
* Logic Level Gate Drive (MOSFET)
* Performance DFN Package BVDSS -20V BVCEO MOSFET RDS(ON) Typ. 48mΩ @ VGS=-4.5V 65mΩ @ VGS=-2.5V PNP BJT BVEBO.
* This is a Hal

SUM202MN Applications

* Power Management in Portable and Battery
* Powered Products; i. e. , Cellular and Cordless Telephones and PCMCIA Cards Ordering Information Device Marking Package SUM202MN SUM202 DFN8 Marking Diagram 1 SUM202 YMM Column 1 : Device C

📥 Download Datasheet

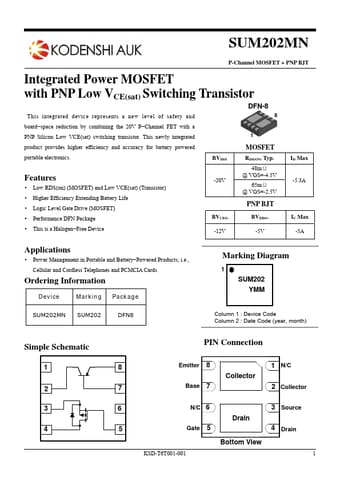

Preview of SUM202MN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SUM202MN
Manufacturer
AUK
File Size
346.59 KB
Datasheet
SUM202MN-AUK.pdf
Description
P-Channel MOSFET + PNP BJT
