ATF-331M4 Low Noise Pseudomorphic HEMT

ATF-331M4 Description

ATF-331M4 Low Noise Pseudomorphic HEMT in a Miniature Leadless Package Data Sheet .
Avago Technologies’s ATF-331M4 is a high linearity, low noise pHEMT housed in a miniature leadless package.

ATF-331M4 Features

* Low noise figure
* Excellent uniformity in product specifications
* 1600 micron gate width
* Miniature leadless package 1.4 mm x 1.2 mm x 0.7 mm
* Tape-and-reel packaging option available Specifications 2 GHz; 4 V, 60 mA (Typ. )
* 0.6 dB noise figure
* 15 dB associated g

ATF-331M4 Applications

* in Wireless LAN, WLL/RLL, MMDS, and other systems requiring super low noise figure with good intercept in the 450 MHz to 10 GHz frequency range. Note: 1. From the same PHEMT FET family, the smaller geometry ATF-34143 may also be considered for the higher gain performance, particularly in the higher

📥 Download Datasheet

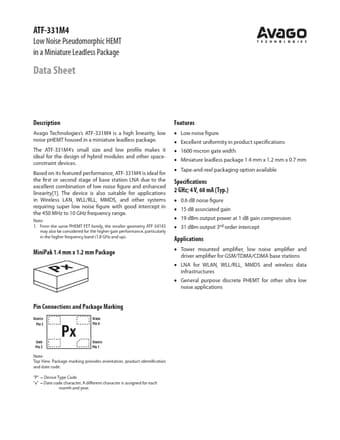

Preview of ATF-331M4 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATF-331M4
Manufacturer
AVAGO
File Size
182.21 KB
Datasheet
ATF-331M4-AVAGO.pdf
Description
Low Noise Pseudomorphic HEMT
