AX1201

1A Ultra Low Dropout Linear Regulator

AXElite

AX1201 Features

* small size to reduce the junction-to-case resistance, being applicable in 0.5~3W applications.  FEATURES - Ultra Low Dropout - 0.14V(typical) at 1A Output Current - Adjustable mode: 1.22V Reference Voltage - Fixed mode:5V, 9V, 12V output voltage - Operating voltage can be up to 23V. - Current-Limit

AX1201 General Description

The AX1201 is a low-dropout voltage regulator suitable for various electronic equipments. It provides constant voltage power source. The dropout voltage of AX1201 is below 0.14V in full rated current (1A). This regulator has various functions such as a peak current protection, a thermal shut down, a.

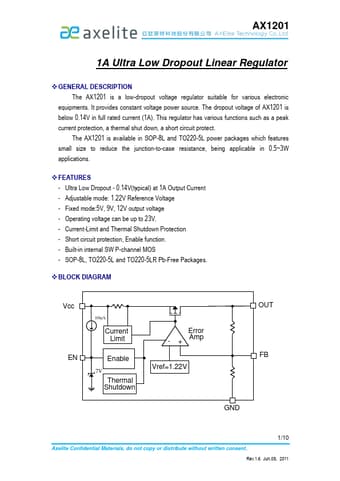

AX1201 Datasheet (364.55 KB)

AX1201 Datasheet Preview — Preview of AX1201 PDF

Datasheet Details

Part number:

AX1201

Manufacturer:

AXElite

File Size:

364.55 KB

Description:

1a ultra low dropout linear regulator.
