AX1203

3A Ultra Low Dropout Linear Regulator

AX1203 Features

* small size to reduce the junction-to-case resistance, being applicable in 0.5~3W applications.  FEATURES - Ultra Low Dropout - 0.4V(typical) at 3A Output Current - Adjustable mode: 1.22V Reference Voltage - Fixed mode:5V, 9V, 12V output voltage - Operating voltage can be up to 23V. - Current-Limit

AX1203 General Description

The AX1203 is a low-dropout voltage regulator suitable for various electronic equipments. It provides constant voltage power source. The dropout voltage of AX1203 is below 0.4V in full rated current (3A). This regulator has various functions such as a peak current protection, a thermal shut down, a .

AX1203 Datasheet (349.47 KB)

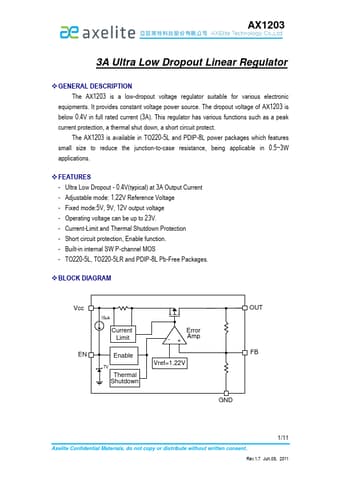

Preview of AX1203 PDF

Datasheet Details

Part number:

AX1203

Manufacturer:

AXElite

File Size:

349.47 KB

Description:

3a ultra low dropout linear regulator.
