AX1204

1A Ultra Low Dropout Linear Regulator

AXElite

AX1204 Features

* small size to reduce the junction-to-case resistance, being applicable in 0.1~1.6W applications.  FEATURES - Ultra Low Dropout - 0.15V(typical) at 1A Output Current - Adjustable mode: 1.22V Reference Voltage - Fixed mode:2.5V, 3.3V, 5V output voltage - Operating voltage can be up to 12V. - Current-

AX1204 General Description

The AX1204 is a low-dropout voltage regulator suitable for various electronic equipments. It provides constant voltage power source. The dropout voltage of AX1204 is below 0.15 V in full rated current (1A). This regulator has various functions such as a peak current protection, a thermal shut down, .

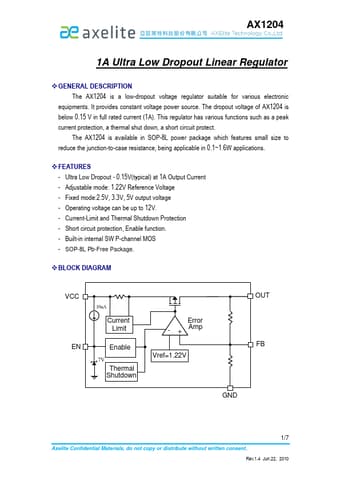

AX1204 Datasheet (317.21 KB)

AX1204 Datasheet Preview — Preview of AX1204 PDF

Datasheet Details

Part number:

AX1204

Manufacturer:

AXElite

File Size:

317.21 KB

Description:

1a ultra low dropout linear regulator.
