AX1209

2A LDO Linear Regulator

AX1209 Features

* small size to reduce the junction-to-case resistance.  FEATURES - Operating voltage range: 7V~24V. - Adjustable Output Version - Low Dropout voltage: 1.1V (typical) at 2A Output Current. - Current-Limit and Thermal Shutdown Protection. - Short circuit protection. - Shutdown function. - Built intern

AX1209 General Description

The AX1209 is a low-dropout voltage regulator suitable for various electronic equipments. It provides constant voltage power source. The dropout voltage of AX1209 is 1.1V in full rated current (2A). This regulator has various functions such as a peak current protection, a thermal shut down, a short .

AX1209 Datasheet (533.28 KB)

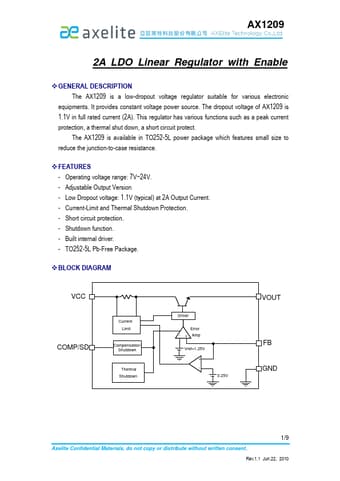

Preview of AX1209 PDF

Datasheet Details

Part number:

AX1209

Manufacturer:

AXElite

File Size:

533.28 KB

Description:

2a ldo linear regulator.
