AX3001

2A PWM Buck DC/DC Converter

AXElite

AX3001 Features

* - w`R m Û V w output voltage range, 1.23V to 19.5V. Adjustable version 150KHz fixed switching frequency. Voltage mode non-synchronous PWM control. Thermal-shutdown and current-limit protection. ON/OFF shutdown control input. Short Circuit Protect (SCP). Operating voltage can be up to 22V. Output l

AX3001 General Description

The AX3001 series are monolithic IC designed for a step-down DC/DC converter, and own the ability of driving a 2A load without additional transistor. It saves board space. The external shutdown function can be controlled by logic level and then come into standby mode. The internal compensation makes.

AX3001 Datasheet (529.35 KB)

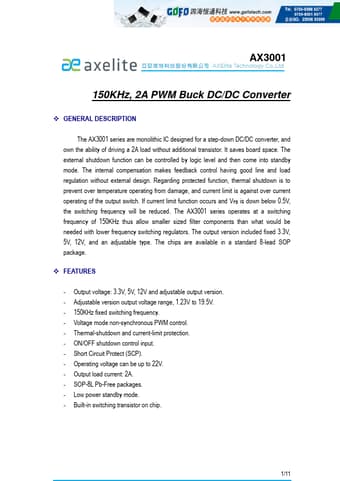

AX3001 Datasheet Preview — Preview of AX3001 PDF

Datasheet Details

Part number:

AX3001

Manufacturer:

AXElite

File Size:

529.35 KB

Description:

2a pwm buck dc/dc converter.
